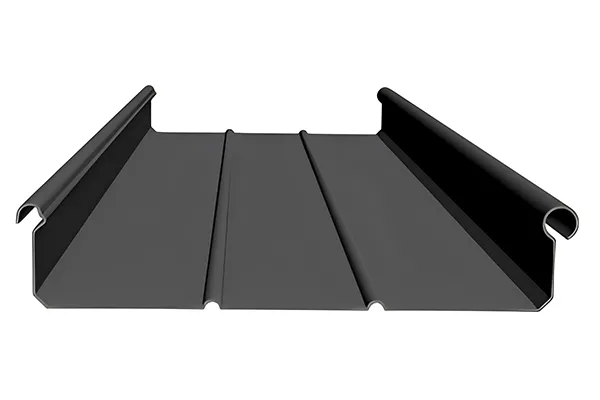

    YX65-300

    Metal Roofing Sheets

    Single skin standing seam metal profiles for roofs

    • Effective cover width: 300mm/328mm/400mm/428mm/500mm/600 mm
    • Length: 1m-12m (customizable)
    • Thickness: 0.4mm-1.0mm
    • Material: Galvanized steel sheet, galvalume steel sheet, titanium zinc sheet, Al-Mg-Mn alloy sheet
    Request a Quote
    • Metal Roofing Sheets
    • Metal Roofing Sheets
    • Metal Roofing Sheets
    • Metal Roofing Sheets

    Featuring a seam-locked system with additional stiffening ribs, these single-skin metal profiles provide greater structural integrity and a distinct linear appearance. This type of profile works well for projects that need smooth curves or unique shapes, giving architects more freedom while keeping the roof safe, watertight, and long-lasting.

    Applications

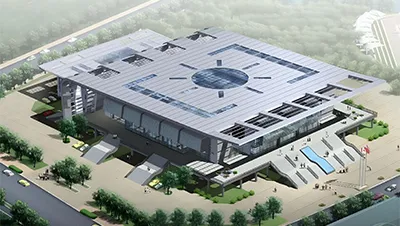

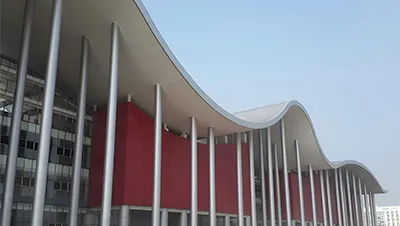

    Ideal for industrial facilities, commercial complexes, office towers, hotels, shopping centers, and exhibition halls. They are also a good choice for coastal projects or regions with heavy rainfall and strong winds, thanks to their reliable waterproof properties.

    Certifications & Compliance

    Our operations are certified to ISO 9001, ISO 14001 and ISO 45001. For international projects, we can also arrange project-specific third-party testing and support market-specific product approvals across North America, the European Union, Southeast Asia, Australia and New Zealand. Available compliance documentation includes ASTM test reports, CE marking, CIDB certification, and other approvals that can be provided according to specific project requirements.

    Advantages & Applications of Metal Roofing Sheets
    • The standing seam uses a mechanical 360° lock, fastened to aluminum alloy clips, so there are no visible screws or penetration holes on the roof surface.
    • The full-length panels work as a single layer, guiding rainwater away while protecting the building from leaks.
    • No sealants are required, this avoids aging issues, reduces environmental impact, and extends the lifespan of the roof.
    • The fixing clips feature an insulated layer that reduces cold bridging and enhances energy efficiency.
    • The layered system provides insulation while also reducing noise, meeting important performance needs in modern buildings.

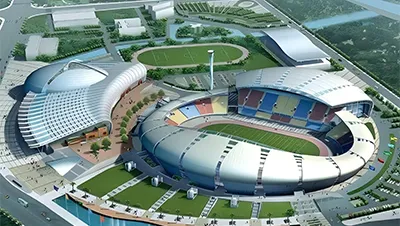

    • Metal roofing sheets are commonly used in large venues and industrial facilities, with roof bases made from either concrete or steel.

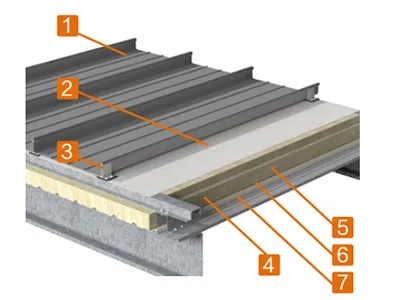

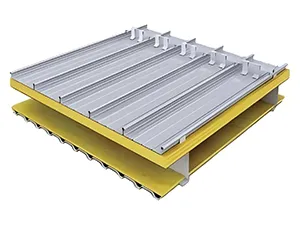

    Metal Roofing Sheets
    • Roof panel
    • Air barrier
    • Aluminum alloy clamp
    • Hat type purlin
    • Rock wool insulation layer
    • Breathable membrane
    • Liner sheet
    Specifications

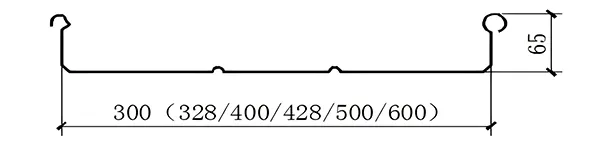

    Model YX65-300
    Effective cover width 300mm/328mm/400mm/428mm/500mm/600 mm
    Length 1m-12m (customizable)
    Thickness 0.4mm-10mm
    Material Galvanized steel sheet, galvalume steel sheet, titanium zinc sheet, Al-Mg-Mn alloy sheet
    Metal sheet suppliers Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
    Color Standard color + custom color
    Surface coating PE/HDP/PVDF, etc.
    Lifespan At least 50 years
    Applications Architectural roofing sheets
    Remarks 1. Professional installation guidance is available to ensure proper assembly
    2. Other sizes or customized designs can be provided upon request
    Features
    • The standing seam design creates a clean surface with no joints or screw holes, giving the roof a smooth finish while also improving waterproofing and fire resistance.

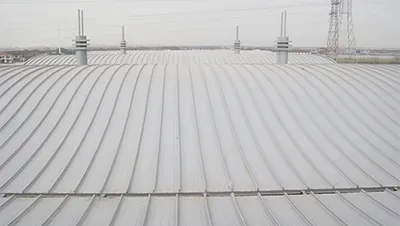

    • Panels can be installed on slopes as low as 1.5°, and they can be curved into inner or outer arcs, making it easier to achieve distinctive roof shapes and smooth architectural lines.
    • The high-standing seams allow for quick installation with minimal material waste, improving efficiency on-site and helping reduce overall costs.
    • Made from high-quality aluminum-magnesium-manganese alloy, the panels offer strong corrosion resistance and require little to no maintenance over their lifespan.
    Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors

    Need more colors? Feel free to get in touch!

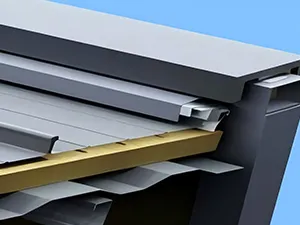

    Installation Details

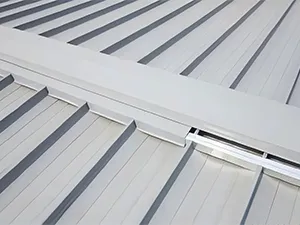

    • Ridge capRidge cap

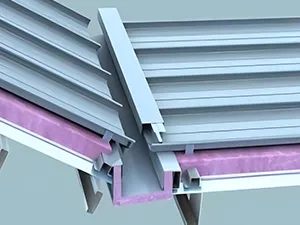

    • Gable trimGable trim
    • Eave gutterEave gutter

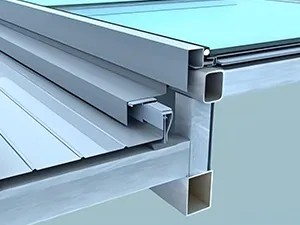

    • Skylight flashingSkylight flashing

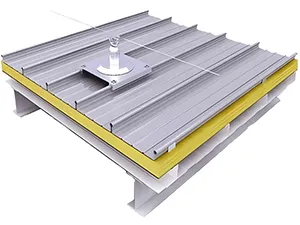

    • Fall protection anchorFall protection anchor
    • Snow guardSnow guard
    Get in Touch

    Tell us about your construction project today!

    Related Metal Roof Panels
    Metal Building Panels
    Discover All Products

    For areas with strong winds, heavy rain, snow, or hail, we recommend metal roofing sheets made from aluminum-magnesium-manganese alloy. With a PVDF coating and roll-formed structure, they offer high durability and help improve the overall seismic performance of the roof.

    Stone-coated metal roofing tiles are a great choice for projects that prioritize aesthetics and sustainability. They have a service life of over 50 years, are fully recyclable, and feature a ceramic-coated surface that looks natural and elegant while performing well in different climates.

    Yes, several of our metal roofing sheets are suitable for curved or S-shaped roofs. With concealed seam joints and a screw-free finish, they ensure a seamless look and preserve the architectural design.

    We offer insulated composite roofing panels that are designed with prefabricated solar interfaces. They allow PV modules to be mounted directly without additional rails or connectors, reducing both material and installation costs while also providing insulation benefits.
