    YX35-125-750

    Metal Wall Panels

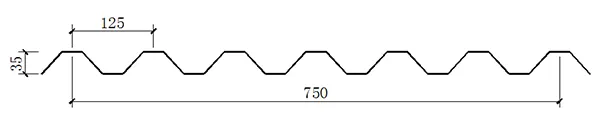

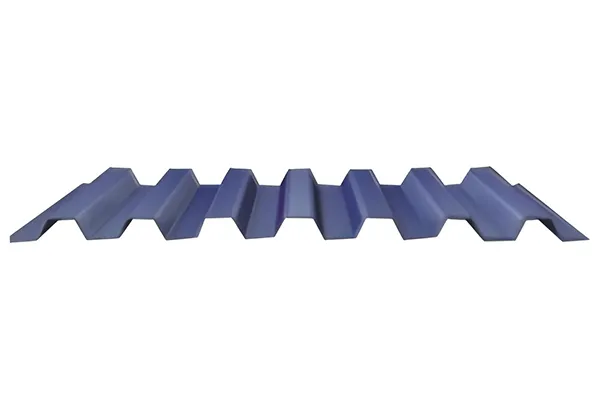

    35mm depth×750mm width trapezoidal cladding sheets for facades or exterior walls of various types of buildings

    • Effective cover width: 750mm
    • Overall width of sheet: 1000mm
    • Thickness: 0.4mm-1.0mm
    • Length: Customizable
    • Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
    Request a Quote
    • Metal Wall Panels
    • Metal Wall Panels

    Facade cladding sheets with a trapezoidal rib profile create a uniform surface and give buildings a clean, appealing look. With a 1000 mm width and thickness options from 0.4 mm to 1.0 mm, they can be customized for different projects. Made from coated aluminum-magnesium-manganese steel, they offer strong weather resistance and maintain a neat finish with little maintenance.

    Applications

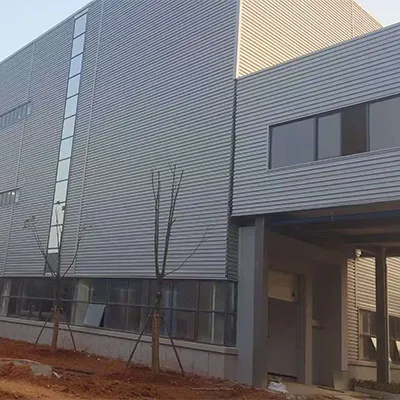

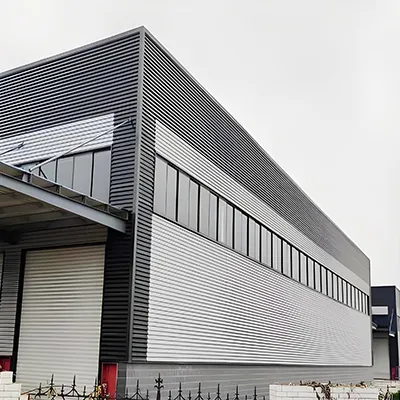

    Suitable for industrial facilities, commercial buildings, office towers, hotels, shopping centers, and exhibition halls.

    Certifications & Compliance

    Our operations are certified to ISO 9001, ISO 14001 and ISO 45001. For international projects, we can also arrange project-specific third-party testing and support market-specific product approvals across North America, the European Union, Southeast Asia, Australia and New Zealand. Available compliance documentation includes ASTM test reports, CE marking, CIDB certification, and other approvals that can be provided according to specific project requirements.
    Specifications
    Model YX35-125-750
    Effective cover width 750mm
    Overall width of sheet 1000mm
    Thickness 0.4mm-1.0mm
    Length Customizable
    Type of cladding Exposed fastener wall panel
    Installation Horizontal installation, vertical installation
    Material Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
    Metal sheet suppliers Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
    Color Standard color + custom color
    Surface coating PE/HDP/PVDF, etc.
    Lifespan At least 50 years
    Applications Architectural cladding for walls and roofs
    Mounting accessories included A full range of shear studs, self-tapping screws, clamps, etc.
    Remarks 1. Professional installation guidance is available to ensure proper assembly
    2. Other sizes or customized designs can be provided upon request
    Features
    • The uniform trapezoidal rib pattern provides a consistent and modern look for exterior walls.
    • The panels can be produced in different thicknesses to meet specific building requirements.
    • They allow both vertical and horizontal installation for greater design flexibility.
    • A wide range of available colors makes it easy to create customized façade styles.
    • The coated metal surface ensures durability against corrosion, fading, and weather exposure.
    • The panels are self-cleaning and require minimal maintenance to keep their good appearance over time.
    • Thanks to their lightweight design, their installation is easy which reduces construction costs.
    Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors

    Need more colors? Feel free to get in touch!

    Get in Touch

    Tell us about your construction project today!

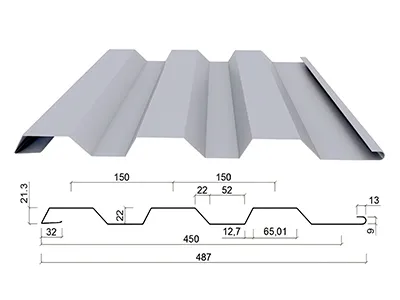

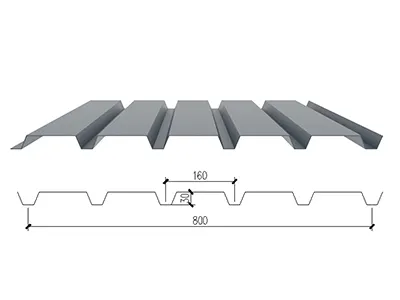

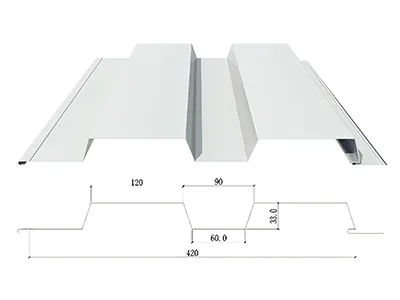

    Related Metal Wall Panels Learn more
    Metal Building Panels
    Discover All Products

    Metal façade cladding is valued because it combines design with protection. While it gives buildings a modern and uniform look, it also shields exterior walls from rain, wind, and corrosion. Since it is lighter than many traditional materials yet strong and durable, it helps improve the lifespan of the structure while reducing future maintenance.

    We offer a wide range of metal wall cladding, covering different architectural and functional needs. Trapezoidal and corrugated profiles are preferred for their strength and easy installation, liner and AG panels create a smoother appearance, while batten profiles highlight vertical lines and add a distinctive design element. Each type of the facade cladding options we offer provides both structural reliability and visual impact.

    Façade cladding can improve both thermal and acoustic performance, especially when panels include insulating cores or protective coatings. Since they help regulate indoor temperature and reduce outside noise, they create more comfortable spaces for schools, hospitals, offices, and other commercial or public buildings, while also supporting energy efficiency.

    Façade cladding is suitable for both new constructions and renovations. In older buildings, façade cladding not only refreshes the appearance but also improves insulation and weather resistance, giving the structure better performance without the need for extensive rebuilding. These features make metal wall cladding a practical and cost-effective solution to extend the life of the façade.

    With proper installation and quality coatings, metal cladding can remain in good condition for decades. Thanks to their resistance to fading, corrosion, and harsh weather, maintaining this type of metal cladding is simple, even in coastal or high-rainfall areas.
